getting a handle


In the process of setting up and testing the newly acquired lathe:

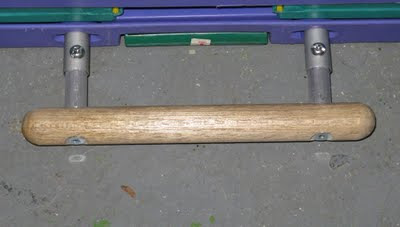

I went ahead and turned some aluminium pieces to repair a useful but poorly made rolling cart. The plastic handle had cracked where it met the telescoping tubes coming out of the body of the cart itself. The plugs are 1/2" diameter, 1-3/4" long blanks sawn off a rod, faced, drilled & tapped 1/4-20. They are cross-drilled and tapped 10-24 to re-attach to the tubes. The handle is a wooden dowel shaped on a disc sander and counterbored to accept the plugs. 1/4-20 countersunk bolts were used to connect the plugs to the handle. Since everything fits, I can take it apart to polish the aluminium and varnish the wood.
